Tensor Technologies Corporation

Room temp to 800C Thermal Stage
for Bomem DA3 and DA8

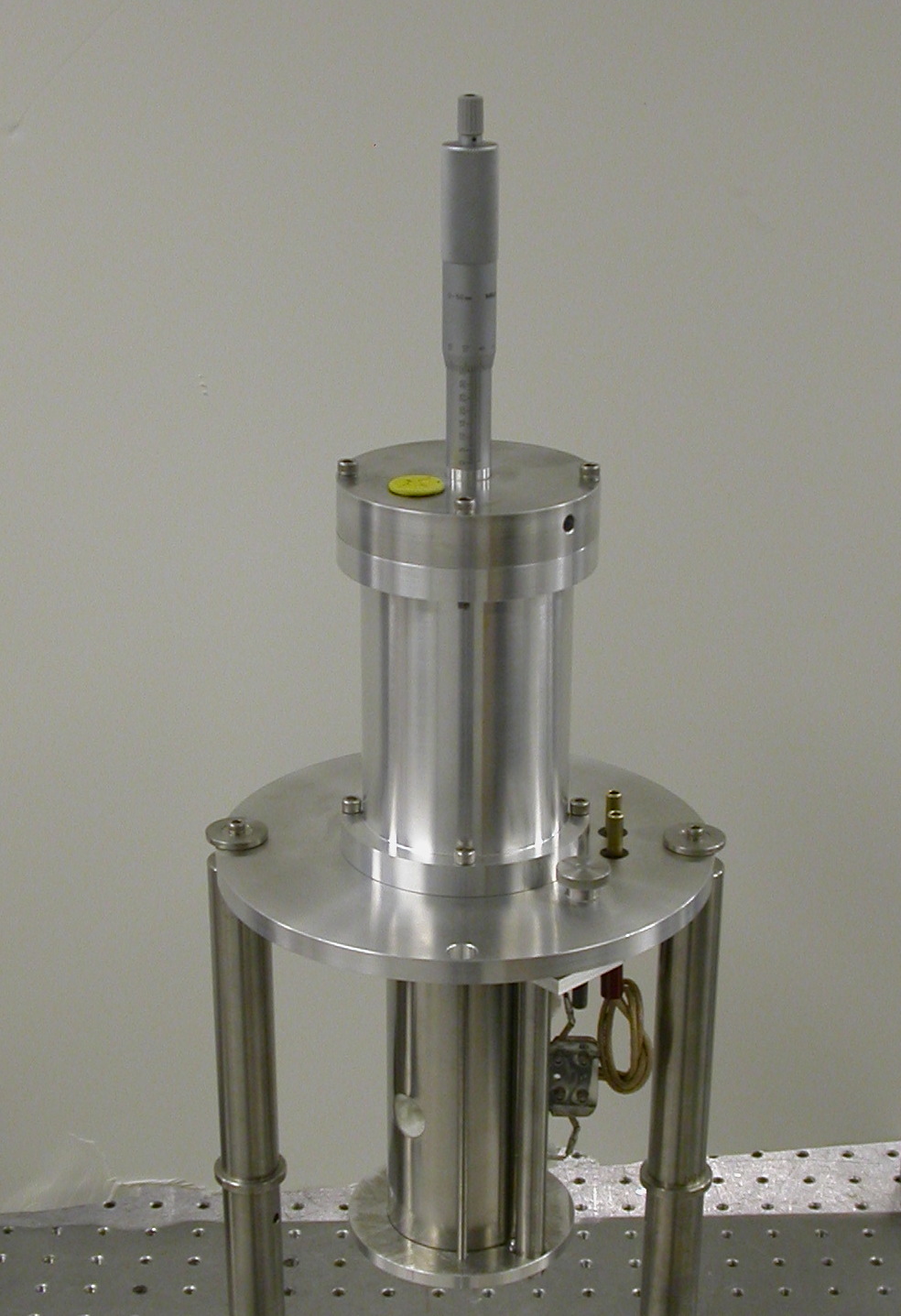

ThermalStage_top_Bomem
ThermalStage_Bomem
FEATURES

*Functions for both reflection and transmission measurements to 800 C.

*Can be configured for two or three sample positions, which are adjusted by a full two inch vertical micrometer.

*All feed throughs are vacuum tight to allow evacuation of system.

*Both sample height and oven height are independently adjustable from the outside.

*Sample mount provides angular adjustment about the horizontal and vertical axes
separately for each sample.

*Power connections and thermal connection are detachable allowing easy relocation of assembly to bench for sample installation.

*Light weight aluminum body for ease of placement.

*Complete with sample mounts with the following apertures: 0.060" = 1.52 mm, 0.080" = 2.03 mm, 0.106" = 2.69 mm, 0.200" = 5.08 mm, 0.300" = 7.62 mm


*Fully customer servicable and includes extra replacement type K thermocouples.
